Functional Safety Tests

Functional Safety Tests
System for appliance performance tests

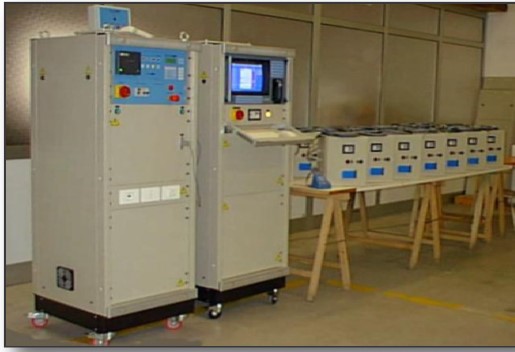

CAR1000

CAR1000 system is designed to run performance functional tests on electrical equipment, in particular refrigerators and AC units of all kinds. It consists of a central control unit and a number of acquisition boxes placed nearby the products under test.
Each acquisition box monitors up to 3 temperatures as standard (or up to 5 as option) and the current of the unit under test (power load as an option).



The control unit reads the data collected by the acquisition boxes, stores the test data on a data- base, identifies the product model by identification code, and then compares the test data with the reference parameters for such model, in order to decide whether the unit has successfully passed the test or not.
The Pass/Reject result is displayed on the screen and stored on the database. All data can be traced in order to comply with the ISO 9000 standard framework.

CAR1000 is available on the following versions :

  • Moving Carousel, suitable for mass production lines of domestic appliances
  • Batch Test

In the Batch Test version the products are tested in batches. The acquisition boxes are mounted in a fixed position, usually on a wall, and the items to test are placed next to them. Once the test cycle is completed the products are removed and a new batch is connected to the test system. The acquisition boxes send the data to the control station via RS422 serial link. This version is more suitable for small and medium production lines.

Batch Test

Moving Carou
Electrical Safety Test
Automatic electrical safety tester

ESC is an automatic test system housed in a metallic cabinet (with or without castors) designed to test single-phase or three- phase appliances having rated power up to 10kVA, with the possibility to supply the appliance with stabilized tension.

The system is provided with microprocessor controller and LCD display which allows the configuration of different testing programs for different appliance to be tested.

The system can locally store up to 200 test programs and 100 test results. It is ready to be fitted to barcode reader. Serial interface for remote PC connection to manage, program and file data of performed tests.

Performed Tests

  • Ground conductor efficiency
  • Insulation resistance
  • Dielectric strength (applied voltage)
  • Residual current
  • Electrical absorption, 50 or 60 Hz
  • Short-circuit


Available options

  • Ground test probe
  • Calibration box
  • Bar code reader
  • On-board printer
  • Software for collecting data in external PC
Electrical safety test
Semiautomatic electrical safety tester
MP500 MP510

Portable semiautomatic systems–consisting of one (MP500) or two (MP510) control boxes–designed to test single-phase powered appliances, rated with power up to 3 kVA (MP500) or up to 4,5 kVA (MP510).

The system is controlled by microprocessor and pro- vided with LCD display allowing the configuration of different test programs for the different appliance to be tested. It can locally store up to 200 test programs and 100 test results. It is ready to be fitted to barcode reader.

Serial interface for remote PC connection to manage, program and file data of performed tests.




MP500


Performed Tests

  • Ground conductor efficiency
  • Insulation resistance
  • Dielectric strength (applied voltage)
  • Residual current
  • Electrical absorption, 50 or 60 Hz
  • Leakage current (only with MP510)

Available options
  • Ground test probe
  • Calibration box
  • Bar code reader
  • On-board printer
  • Software for collecting data in external PC

MP510
